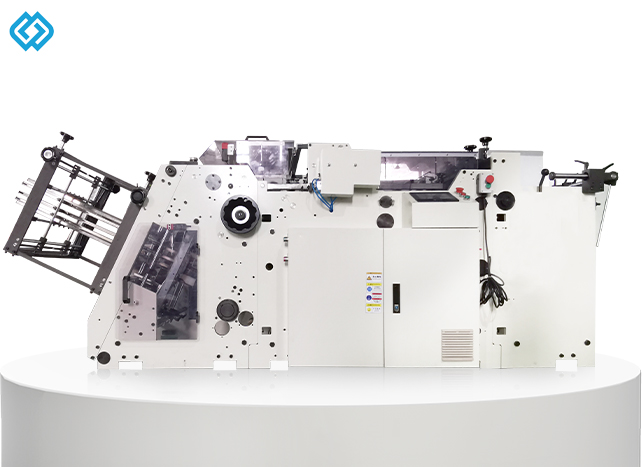

Carton Erecting Machine

Carton Erecting Machine

EASY TO OPERATE & EXCELLENT QUALITY MACHINE

0.00
0.00


EASY TO OPERATE & EXCELLENT QUALITY MACHINE


Introduction


Dayuan machine is designed according to European industrial standard. We have more than 20 years experiences on the machinery,So we produced machine not only fast but also stable.Intitially developed inChina,the products have achieved the CE &ISO certification and have been sold more than 70 countries in the world,

Environmental protection,Efficient, stable and durable, made in Guangdong,With the requirements of environmental protection in various countries for plastic limit, it is an ideal choice for producing paper products.



Specifications
1 . Voltage : 380V / 50HZ
2 . Covering Area : 4 . 0M + 1 . 2M
3 . The total Power :l800-A : 8KWL / l800-C : 5KW
4 . Maximum Production Speed : 200 pcs / min
5 . Airpressure : 0 . 6mpa ( Dryandclean compressed ain )
6 . Packing :2980mm1560mm1320mmN.W. : 1500KG . G W . : 1600KG1310mm1170mm * 900mmN.W. : 250KG . G W . : 290KG
7 . Materials : Paper Board 200-600gsm : corrugatedboard paper with thickness not exceed 1 . 5MM


The Differences Between L800-A And L800-C:


1.L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A iseasier to change different box than L800-C.

2.L800-A is better to make eight corners boxes than L800-C.producing paper products.



          型号Machine typeL800-AL1000/2-A
         盒展开·长度 Blank length
    L
         100mm-450mm
  100mm-450mm
         盒展开宽度 Blank length
    B         100mm-480mm   100mm-420mm
         封边高度 Height of side flaps
    H         15mm-220mm   15mm-220mm
         封边加盖高度 Height of side flaps+lid
   H1         50mm-200mm  50mm-200mm
         折角高度 Height of folded flap
   H2         10mm-60mm  10mm-60mm
         折角高度 Height of folded flap
   H3         10mm-50mm  10mm-50mm
         锥度 Conicity
5°-40°  5°-40°
